Otto Tuza

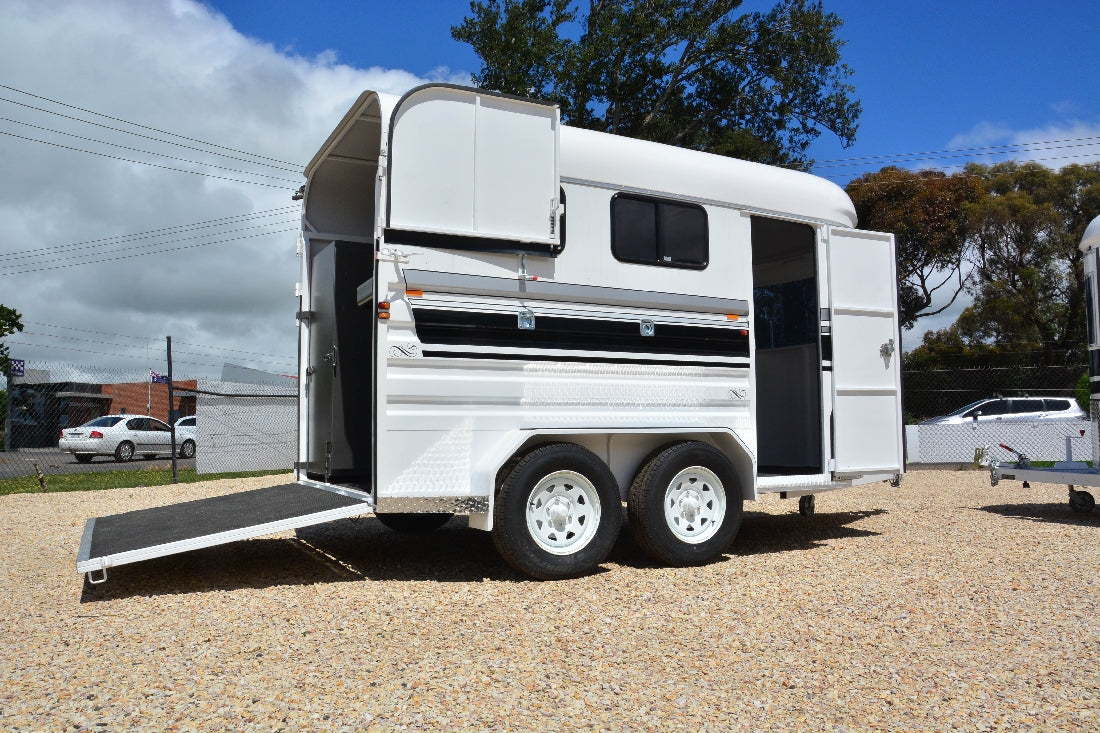

OTTO TUZA 3 Horse Angle Fully Enclosed Float


Southside Stockfeeds Kilmore proudly stock the OTTO TUZA 3 Angled Horse Float.


CALL 03 5782 2866 TO DISCUSS


Angle load standard specifications (please see the measurements and weights table for these):

  • Fully welded panels. No rivets used in the major construction of floats.
  • 4 wheel electric brakes with breakaway system on all Models. You will require a in cab electric control unit fitted inside your tow vehicle to tow this float
  • Standard floats are Open Sided with Full Piece Fiberglass Roof
  • Spring loaded tailgate with spring loaded latches, aluminum strip on top of tailgate with a white color bond tailgate back
  • 5 New Tyres with white rims and parallel bearings the spare is fitted External. (16¨ tyres on 3 and 4 Horse floats, with 14¨ on 2 Horse angle load.
  • Swing up Jockey Wheel
  • Full entry door to right side with checker plate side step
  • Led Lights external with interior travel light
  • 600mm high Checker plate stone guard
  • Checker plate covered in draw bar (Over A-Frame)
  • Checker plate over mudguard
  • Large tinted front window
  • 2x 700X600 Slide window with screens-head side only
  • 2x 700x400 slide window with screens-rump side
  • F27 x 19mm hardwood structural flooring with marine coating, this floor is covered with heavy duty one-piece rubber matting throughout (No cut or joins in the Rubber Matting) fully sealed

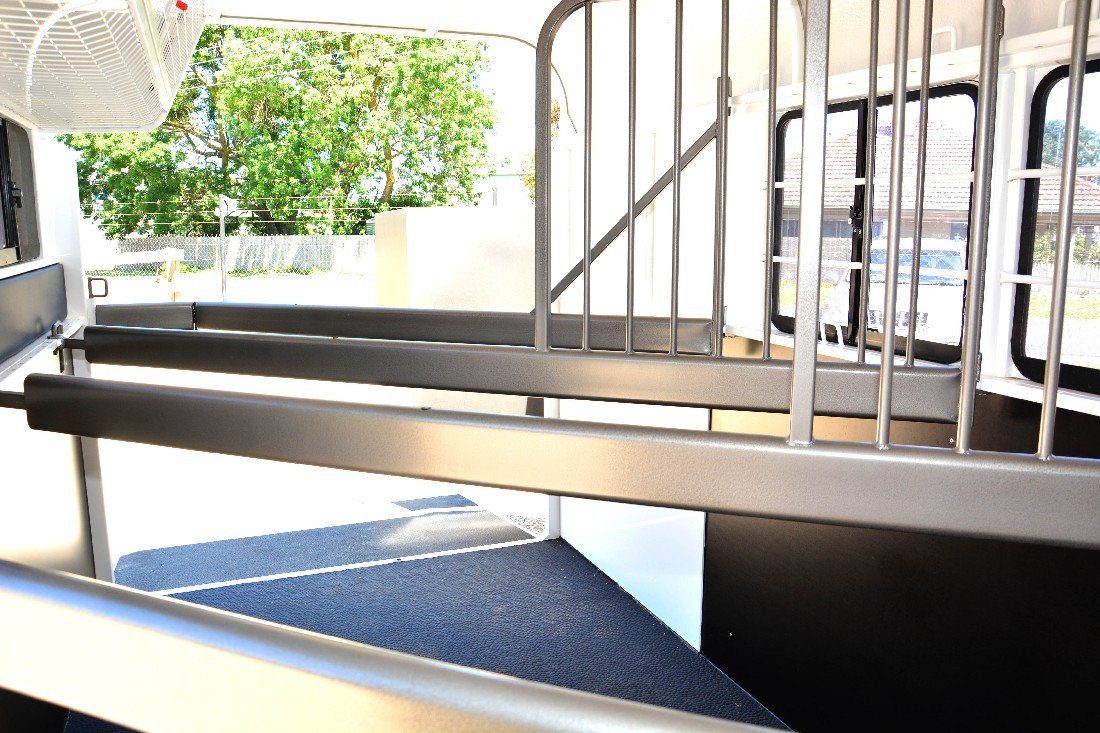

  • Fully adjustable and removable dividers with locking back system for safe unloading head dividers on all Centre dividers (No horse touch each other).
  • Full height timber kickboards on both sides of the float-14mm thick
  • Side wall padding to rump side
  • First Bay has one pop out vent at chest height
  • The whole float is painted in white (2 pack poly urethane paint) and comes with a paint on custom stripe from our range of design and colour choices
  • 12 months warranty on parts and workmanship.
