Description

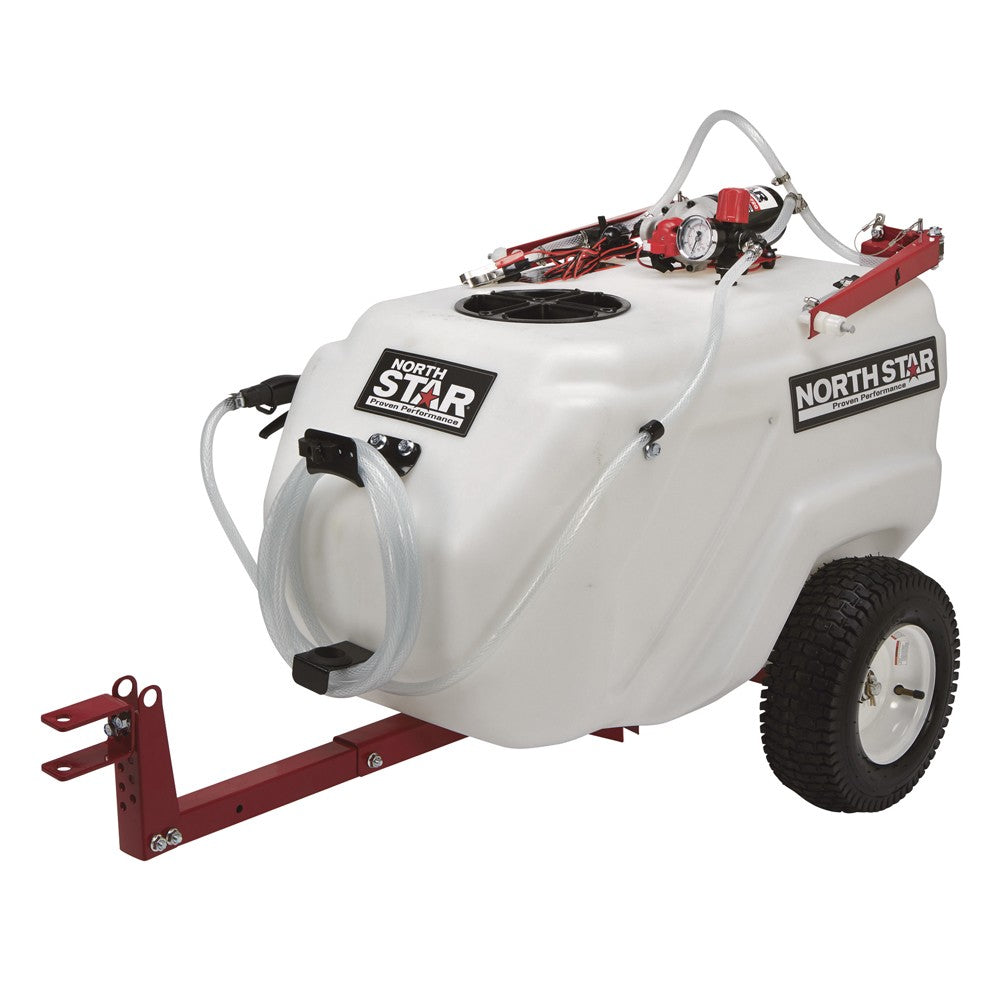

Southside Stockfeeds Kilmore proudly stocks the NorthStar 117ltr Tow-Behind Trailer Boom Broadcast & Spot Sprayer.
The versatile, high-end NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer give you the ability to do both precision and wide-coverage spraying. Equipped with a commercial-grade NorthStar NSQ Series pump, it provides easier priming, exceptional durability and superior resistance to harsh environments and corrosive chemicals. The completely redesigned, the over-sized tank is secured to a heavy-duty 100% steel cart that handles the roughest terrain. A retractable tow-bar, foldable boom arms and removable axle and wheels allow for ultra-compact storage. Litres marks are moulded into the tank for easy fluid level monitoring. Tow behind your ATV or lawn/garden tractor.
- 12V, 70PSI max open flow NorthStar NSQ Series on-demand pump provides faster priming and longer life.
- 100% continuous duty rating
- Honeywell MICRO SWITCH for enhanced durability and efficiency
- Santoprene™ diaphragm and Viton® valves for superior reliability and chemical resistance
- Large-capacity proprietary tank design features extra-thick walls that are UV-resistant and compatible with virtually all pesticides
- Boom arms fold up for easy storage
- 1m boom width with 3m overall broadcast width
- Spring-loaded, breakaway boom arms fold away for compact storage

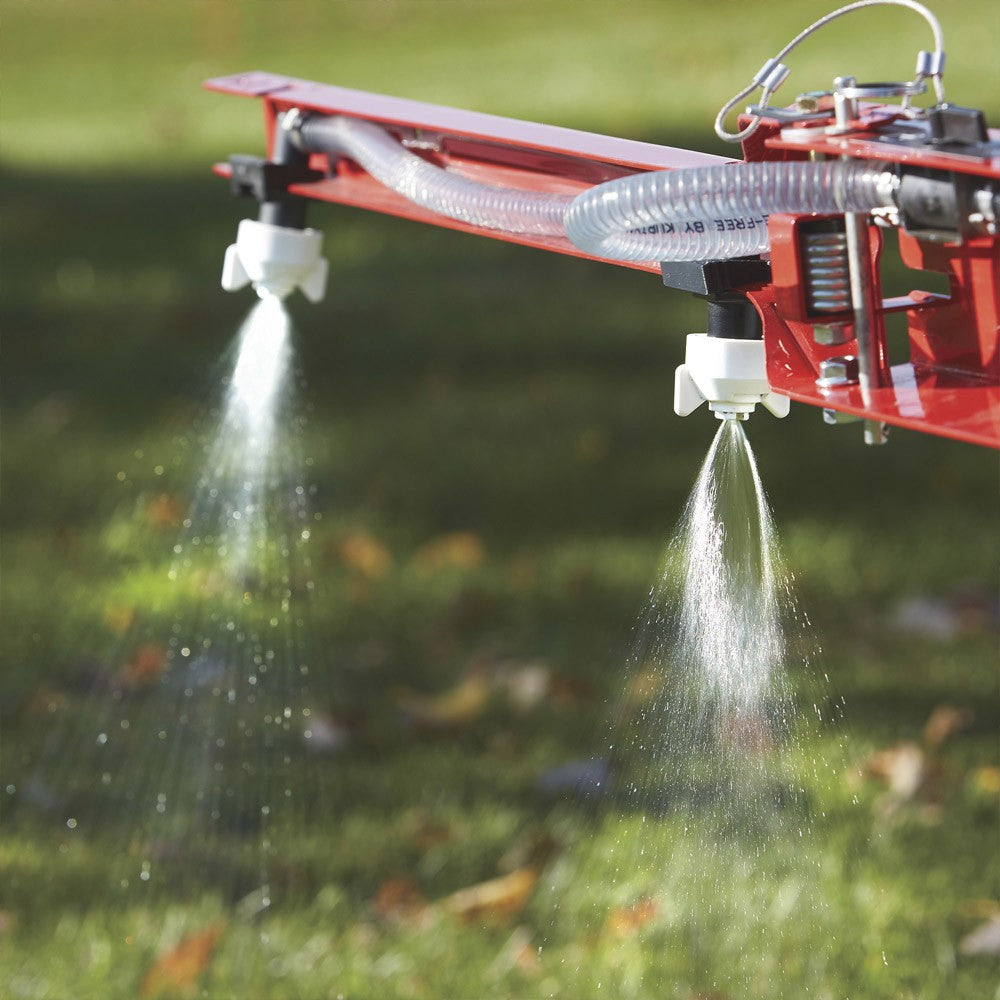

- Left and right boom nozzle control valves
- Control system pressure and fluid agitation with regulator and pressure gauge
- Approved for use with Roundup® agricultural herbicide

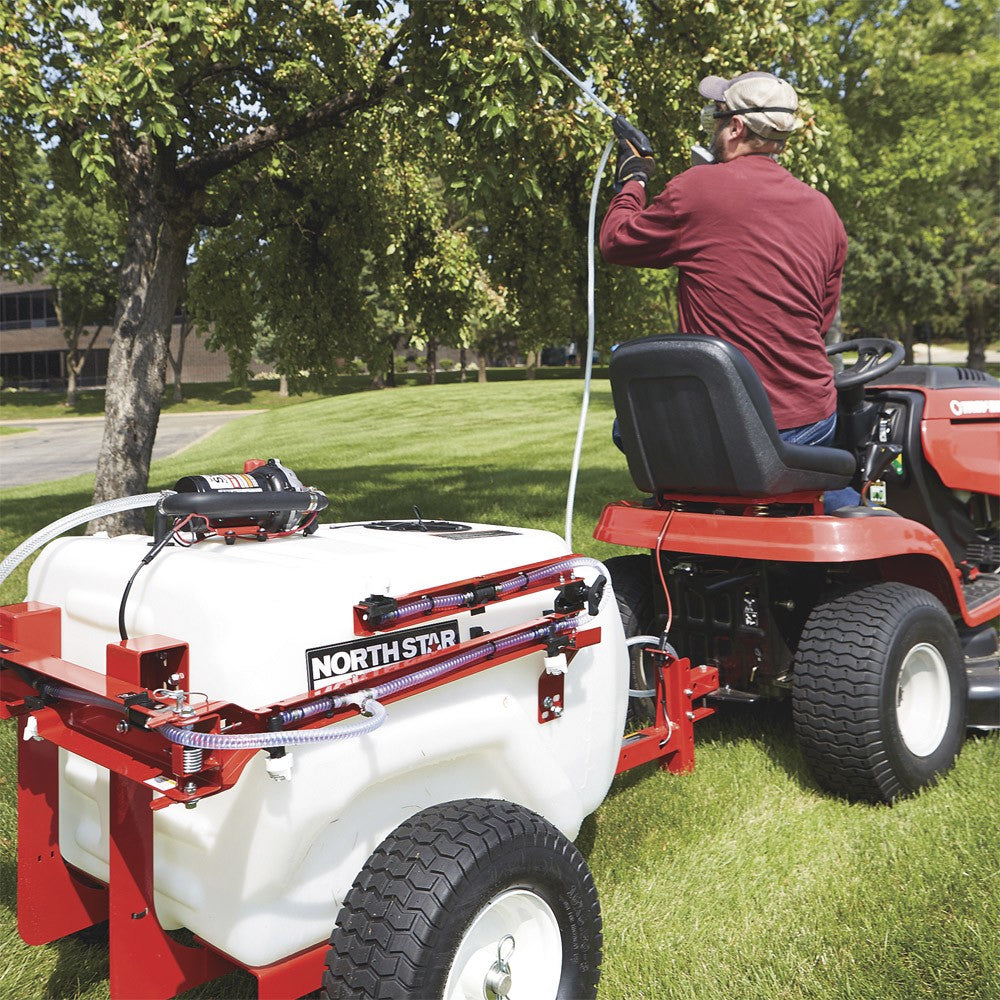

- Spot spray gun nozzle adjusts from cone to stream; shoots 5.7m vertically and 9.1m. horizontally
- 5m clear PVC hose makes monitoring chemical flow simple
- Rugged powder-coated steel cart with large 30cm pneumatic wheels
- 19cm diameter tank lid for easy fills
- Easy empty tank with bottom drain
- Includes pressure gauge and remote switch with battery clips

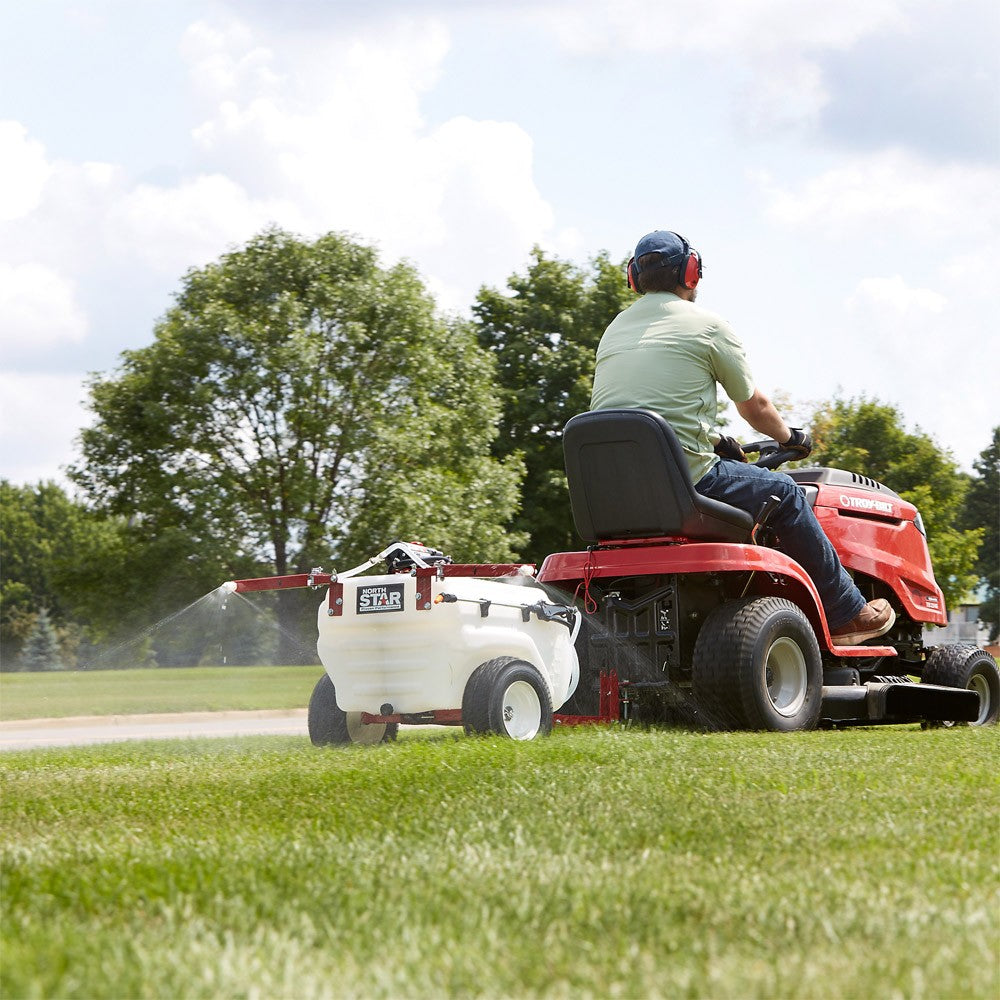

- Attaches to ATV or garden tractor
Specifications
| TB49-49L | TB79-79L | TB117-117L | TB155-155L | TB230-230L | TB380-380L | ||
| Tank Size | 49 Litre | 79 Litre | 117 Litre | 155 Litre | 230 Litre | 380 Litre | |
| Pump Pressure | 40 PSI | 70 PSI | 70 PSI | 60 PSI | 60 PSI | 60 PSI | |
| Pump Flow | 3.8 LPM | 8.3 LPM | 8.3 LPM | 15.1 LPM | 20.8 LPM | 26.5 LPM | |
| Pump Supply | 12V DC | ||||||
| Regulator/ Agitator | Yes | ||||||
| Pressure Guage | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm | |
| Spray Pattern | Stream, Cone, Broadcast | ||||||
| Broadcast Width | 1.07m | 2.13m | 2.13m | 2.53m | 3.57m | 4.57m | |
| Boom Width | 0m | 1.07m | 1.07m | 1.98m | 3.05m | 4.11m | |
| Boom Material | Steel | ||||||
| Boom Control | None | Left / Right | Left / Right | Left / Center / Right | Left / Center / Right | Left / Center / Right | |
| Boom Features | Single Bracket | Folds for Storage Spring Breakaway Ball Valve Control | |||||
| Nozzle Quantity | 1 | 2 | 2 | 5 | 7 | 9 | |
| Nozzle Type | Deflectip | Deflectip | Deflectip | Fan | Fan | Fan | |
| Spray Gun | Spot | Spot | Spot | Deluxe Spot | Deluxe Spot | Deluxe Spot | |
| Spray Height | 3.66m | 5.79m | 5.79m | 6.71m | 9.14m | 10.67m | |
| Gun Hose | 9.5mm x 3.35m | ||||||
| Hose Wrap | Steel Brackets | ||||||
| Suction Strainer | 9.5mm Mushroom | 13mm Mushroom | 13mm Mushroom | 19mm Mushroom | 19mm Mushroom | Inline | |
| Tank Cap | 178mm Tethered | ||||||
| Wheels | 254mm | 305mm | 305mm | 406mm | 406mm | 457mm | |
| Hub | Plastic Bushing | ||||||
| Cart Material | Steel | ||||||
| Axle | 16mm Loose | 25.5mm Fixed | |||||
| Retractable Tow Bar | No | Yes | |||||
| Wire Harness | 2.44m | ||||||
| CE | Yes | Yes | Yes | Yes (Pending) | Yes (Pending) | Yes (Pending) | |
| Warranty | 2 Years | ||||||
